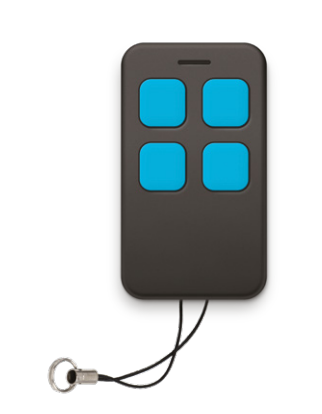

Superior Multi-Fix | Universal fixed code remote control (280-868 MHz)

Multi-brand multifrequency replacement for “fixed code” RF remote controls
This remote control is able to copy any remote control operating with a frequency 433,92 / 868.35 MHz
Possibility to program up to 4 devices of 4 different frequencies. For example:
Key 1: FAAC – 315 MHz
Key 2: BFT – 433.92 MHz
Key 3: Nice – 433.92 / 868.3 MHz
Key 4: Came – 433.92 MHz

USER MANUAL: Superior MULTI-FIX (English)

Important: Before starting the duplication process, ensure that the batteries in both remotes (original and MULTI-FIX) are new.

Supported Frequencies (MHz): 286–340, 380–420, 430.5, 433.42, 433.92, 868.35.

Copying Procedure (Programming)

1. Preparing the MULTI-FIX Remote:

   • Press and hold the button on the MULTI-FIX remote where you want to store the code.

   • While still holding this button, press any other button on the same remote 3 times in succession.

   • The LED indicator on the MULTI-FIX will start flashing slowly, signaling readiness to copy. You can now release the other buttons (but keep holding the first target button).

2. Code Transfer from the Original:

   • Place the original remote next to the MULTI-FIX remote (preferably side-by-side, see manual illustrations).

   • On the original remote, press and hold the button you wish to copy.

   • Hold both buttons until the LED on the MULTI-FIX flashes twice briefly and then stays lit continuously (or confirms successful storage with rapid flashing).

3. Completion:

   • Release all buttons. The code is now stored.

   • To program additional buttons, repeat the entire process from step 1.

Safety Warnings

• Warning: The device contains small parts and a battery. Keep out of reach of children under 5 years old.

• First Aid: Swallowing a battery can cause severe chemical burns and death within 2 hours. Seek medical attention immediately!

• Battery: Use only new CR2032 type batteries. Ensure correct polarity (+ facing up).

• Maintenance: Do not expose the remote to extreme conditions (fire, direct sunlight, water, high humidity).

Technical Tips (Expert ovladac.tv)

• Low Original Power: If copying fails, try changing the distance between the remotes (place them closer or slightly further apart). Older remotes with weak batteries may require more time for code transmission.

• Overwriting Code: If you record a new code onto an already used button, the old one will be automatically deleted and replaced.

• Compatibility: MULTI-FIX is designed for fixed codes. If your system uses a Rolling Code, this model will not work, and we recommend using the QUICK 4in1 model.
