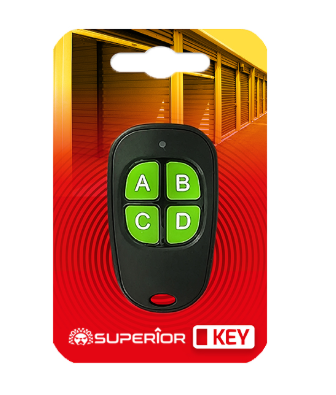

Superior KEY Universal fixed code remote control 433.92 MHz
Technical Specifications
-
Power supply: 2x CR2016 batteries (6 V)
-
Operating range in open space: 60–80 m
-
Supported frequency: 433.92 MHz
Operating Instructions
-
Removing existing codes: Press buttons "A" and "B" simultaneously and hold them until the LED flashes quickly 3 times. While still holding button "A", release and press button "B" 3 times in total. The LED will start flashing to confirm. Release both buttons. The LED will turn off to confirm successful removal.
-
Copying new codes: Place the original remote and your new Superior "Key" remote as close as possible to each other. Simultaneously press the button on the original remote you wish to copy and the button on the Superior "Key" where you want to store the code. The LED will flash twice quickly and then 3 times more slowly to confirm programming. (ATTENTION: If the LED flashes only twice, the code has not been stored correctly. Please repeat the entire copying process.) Repeat the procedure to program other original codes onto the remaining buttons of the Superior "Key" remote.
-
Recovering last codes: Press buttons "C" and "D" simultaneously and hold them until the LED starts flashing. Release both buttons. The LED will turn off to confirm recovery. (CAUTION: Only the last saved configuration can be recovered.)
